Mocom Thayla
Introducing the Mocom Thalya is the dentist’s latest ally for effective maintenance of rotary instruments. Simple and user friendly, it allows perfect lubrication and purging of turbines and handpieces. To start using the machine just connect to the compressed air feed and the power supply.
The importance of handpiece and turbine maintenance.
Crucial tools for any dentist, these instruments also represent one of the biggest cross-contamination risks. When one of these rotating devices slows down or stops, a back-siphoning effects can suck liquids inside the ducts. Hence the need to perform cleaning, disinfection, lubrication and, lastly, sterilisation every single time they’re used. This procedure is also essential for maintaining instrument quality. A poorly maintained handpiece is often subject to breakdowns and accelerated wear.
Lubrication and purge of 4 instruments in less than a minute
The Thalya cycle consists of three stages:
- Duct purge
- Lubrication
- Excess oil purge
The 4 instruments are treated simultaneously, the entire cycle lasting about 55 seconds.

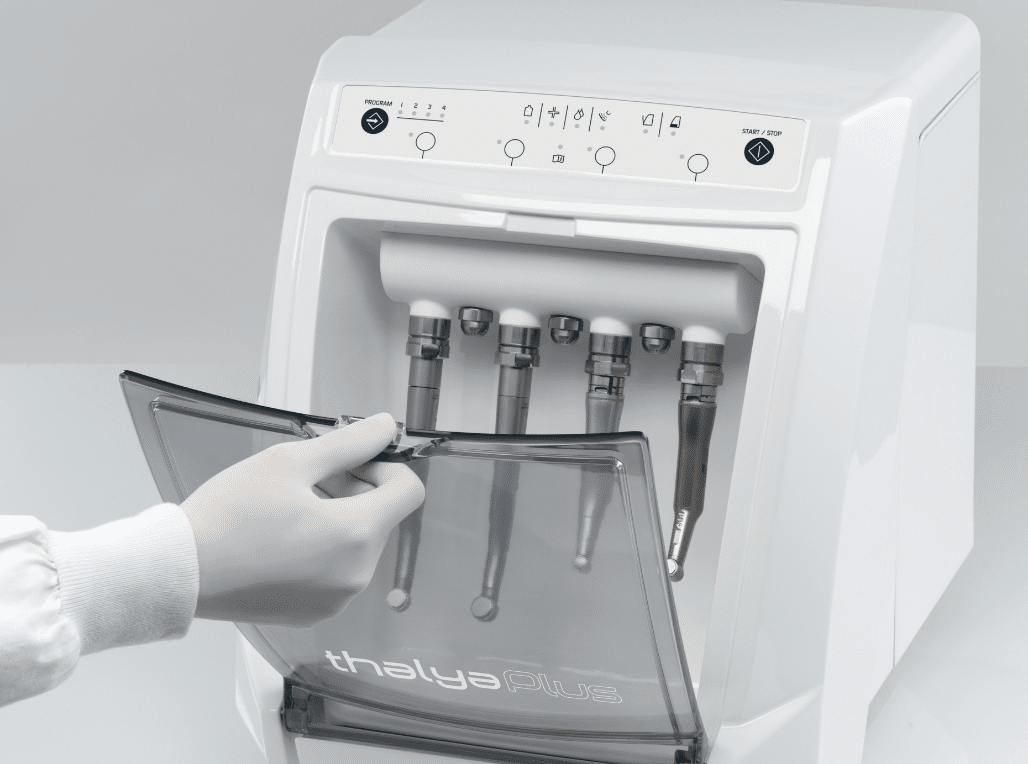

Thalya has been designed to streamline workflows. The couplings can rotate 45 degrees, making placing and removing the instruments easier.

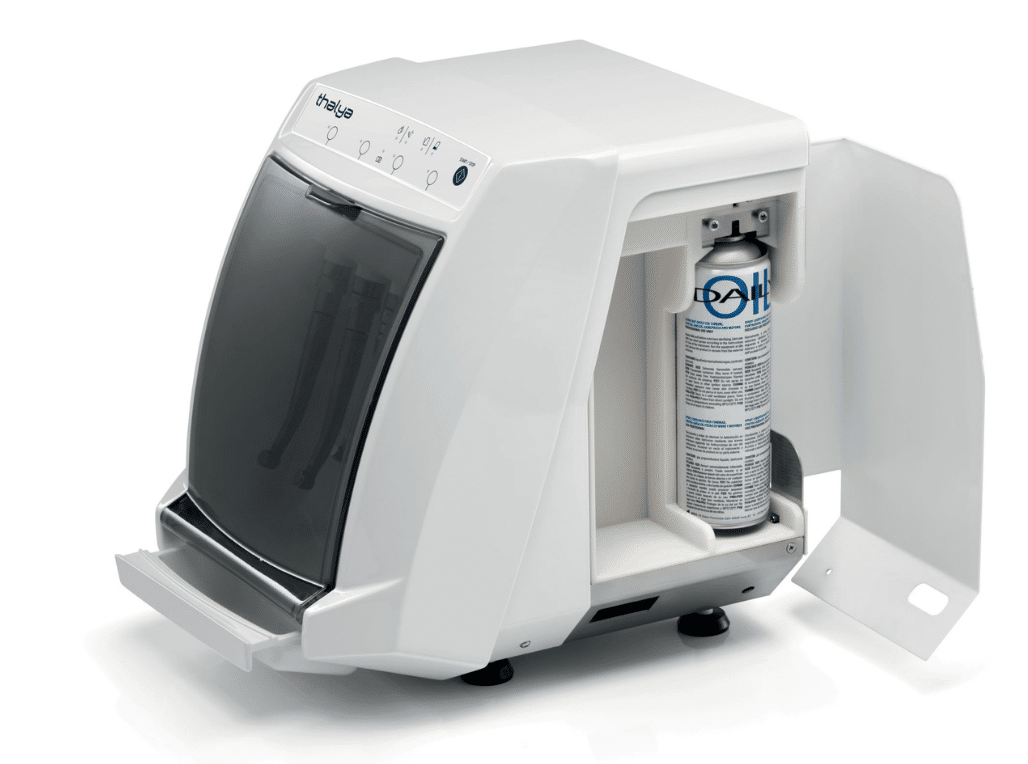

Plug & Play

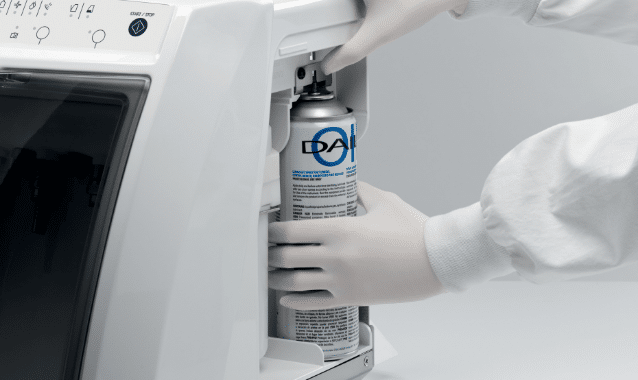

To start using the machine immediately just connect it to the compressed air feed and the power supply, then insert the lubricant can.

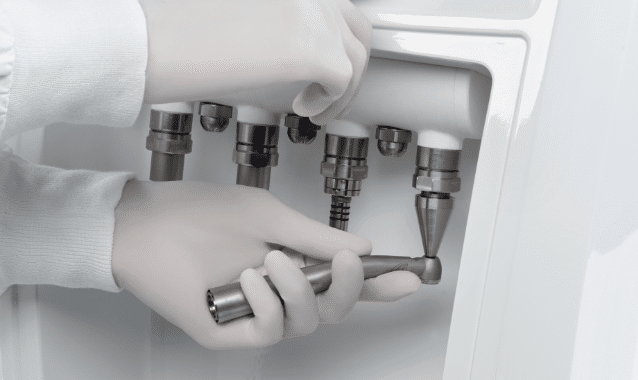

Cleaning the spindle
Thanks to a special support, the spindle can also be treated; this ensures all dust and dirt residues are removed from the handpiece tip.

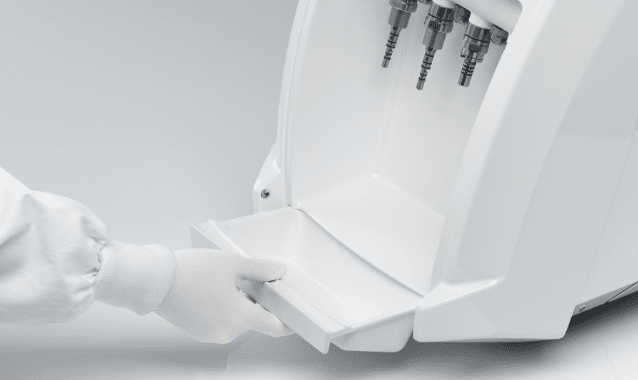

Device hygiene
Innovative design and the characteristics of the treatment compartment ensure complete, perfect sanitization. The front hatch and the liquid collection tray can be removed to allow thorough machine cleaning.
Power Supply – 100/240v – 50/60Hz
Rated Power 30W
External Dimensions (L x H x D) – 340 x 400 x 370mm
Net Weight – Thayla 12.5kg
Lubricant Capacity – 200 – 500ml can
Working pressure – Flow pressure 4-6 bar
Air consumption – 40N/min
Compressed Air Connection – 6 x 4
